Configuring Prometheus

MHD - Healthchecks supports exporting metrics and check statuses to Prometheus, for use with Grafana.

Create read-only API key

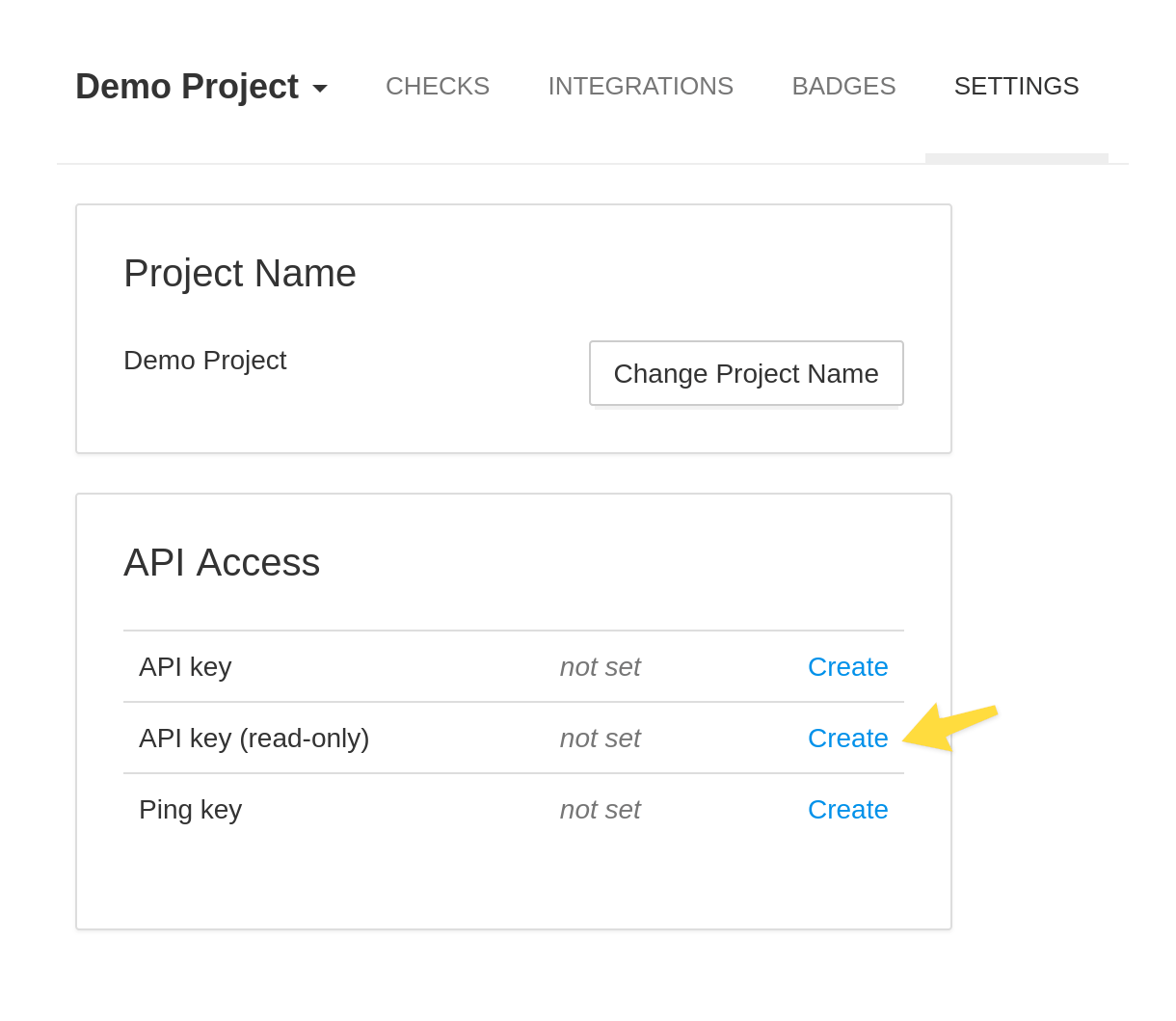

Create a read-only API key in Project Settings › API Access.

Make sure to use a read-only API key. Prometheus does not need read-write API access.

Project's API Keys

Update the prometheus.yml

Add the following scrape configuration to Prometheus:

  - job_name: "healthchecks"
    scrape_interval: 60s
    scheme: https
    metrics_path: /projects/{your-project-uuid}/metrics/{your-readonly-api-key}
    static_configs:
      - targets: ["healthchecks.quarkdose.de"]

The "{your-project-uuid}" is the UUID you see in your browser's address bar when viewing a list of checks for a particular project.

Reload Prometheus, and your changes should be live, coming in under the hc_ prefix.

Available Metrics

The Prometheus metrics endpoint exports the following metrics:

hc_check_up

For every check, indicates whether the check is currently up (1 for yes, 0 for no).

Labels:

  • name – the name of the check
  • tags – check's tags as a text string; multiple tags are delimited with spaces
  • unique_key – a stable, unique identifier of the check (derived from the check's code)
hc_check_started

For every check, indicates whether the check is currently running (1 for yes, 0 for no).

Labels:

  • name – the name of the check
  • tags – check's tags as a text string; multiple tags are delimited with spaces
  • unique_key – a stable, unique identifier of the check (derived from the check's code)
hc_tag_up

For every tag, indicates whether all checks with this tag are up (1 for yes, 0 for no).

Labels:

  • tag – name of the tag
hc_checks_total
The total number of checks.
hc_checks_down_total

The number of checks currently down.

Constructing URLs to Check Details Pages

You can use the unique_key labels to construct URLs to check's details pages in MHD - Healthchecks. Construct the URLs like so:

https://healthchecks.quarkdose.de/cloaked/{unique_key}/

Working With Grafana Cloud

Grafana Cloud requires the metrics endpoints to be authenticated using either HTTP "Basic" or "Bearer" authentication scheme. It refuses to scrape public endpoints. To fulfil this requirement, MHD - Healthchecks provides an alternate metrics endpoint which requires "Bearer" authentication. Use the following settings with Grafana Cloud:

  • Scrape Job URL: https://healthchecks.quarkdose.de/projects/{your-project-uuid}/metrics/
  • Authentication type: Bearer
  • Bearer token: the read-only API key
